File Upload

You can upload files using the temporary upload server and use the resulting URL in various endpoints.
Each endpoint has different allowed file sizes, formats, and media lengths, so please check them directly.

The temporary storage period is 72 hours from the upload time. Files are automatically deleted after this period, so please re-upload if needed.

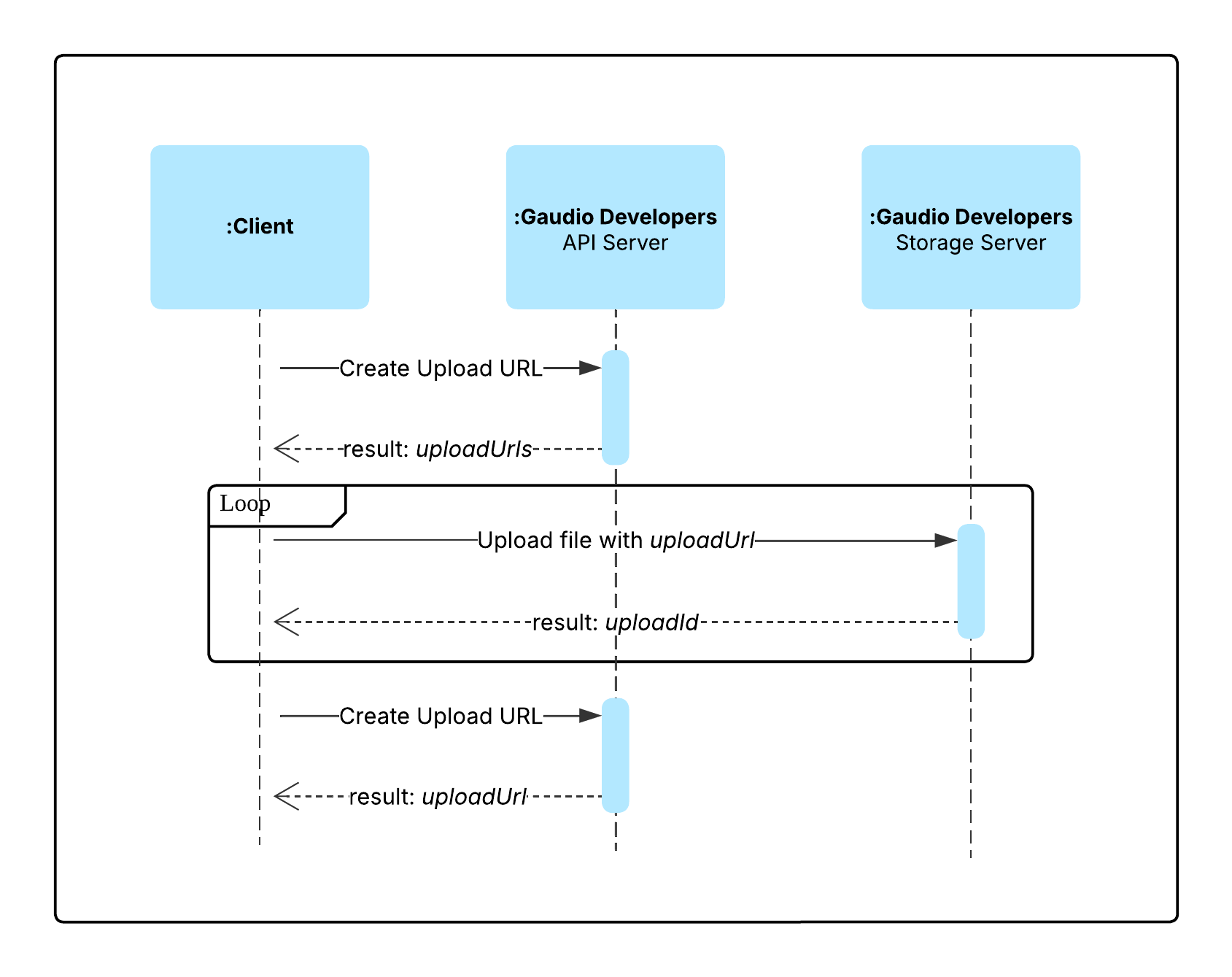

The method for using the temporary upload server is as follows:

Create Upload URL

POST
https://restapi.gaudiolab.io/developers/api/v1/files/upload-multipart/create

Request creation of upload URL for multipart upload.
You must include authentication information in the request.

This API supports multipart upload, with the server specifying a default chunk size of 1GB (1,073,741,824 bytes). You need to split the file to upload into chunks of this size and upload each chunk to the URLs included in the preSignedUrl array. Each URL in the preSignedUrl array is an S3 pre-signed URL that can be used to upload a file chunk. The upload validity period for generated URLs is 24 hours from the time of creation.

Request Body

Field	Required	Type	Description
fileSize	Yes	Number	Size of the file to upload (bytes)
fileName	Yes	String	Name of the file to upload (with extension) See docs for allowed formats, size, and duration per API

Response Body

Field	Type	Description
uploadId	String	Upload identifier
chunkSize	Number	Server-specified chunk size for multipart upload (bytes, default 1GB)
preSignedUrl	Array	Array of pre-signed URLs(String) for each chunk upload

Request

curl -X POST https://restapi.gaudiolab.io/developers/api/v1/files/upload-multipart/create \
    -H "x-ga-apikey: {API_KEY}" \
    -H "Content-Type: application/json" \
    -d '{
        "fileSize":   1000000,
        "fileName":   "file.mp3"
    }'

Response

{
  "resultCode": 1000,
  "resultData": {
    "uploadId": "uploadId",
    "chunkSize": 1073741824,
    "preSignedUrl": [
      "https://s3.ap-northeast-2.amazonaws.com/your-bucket-name/your-object-key?...",
      "https://s3.ap-northeast-2.amazonaws.com/your-bucket-name/your-object-key?..."
    ]
  }
}

Upload

Upload files using the Upload URL.

Upload proceeds by splitting the file into chunks and sending PUT requests to each URL in the generated preSignedUrl array in order. For each chunk upload, you must retrieve the ETag value from the response header, and collect these ETags with partNumbers to create a parts array for use in the final upload completion request.

Additionally, each chunk upload can be performed simultaneously (in parallel) depending on the network environment. Utilizing parallel uploads can reduce the overall upload time. However, even when uploading in parallel, you must accurately collect the ETag and partNumber from each response to properly manage the upload results.

#!/bin/bash
FILE_PATH="./track.mp3"
CHUNK_SIZE=1073741824 # Set from response body `chunkSize`
PRE_SIGNED_URL=( \
  "https://s3.ap-northeast-2.amazonaws.com/your-bucket-name/your-object-key?..." \
  "https://s3.ap-northeast-2.amazonaws.com/your-bucket-name/your-object-key?..." \
)

PARTS=()
for i in "${!PRE_SIGNED_URL[@]}"; do
  OFFSET=$((i * CHUNK_SIZE))
  ETag=$(dd if="$FILE_PATH" bs=1 skip=$OFFSET count=$CHUNK_SIZE 2>/dev/null | \
    curl --request PUT \
      --url "${PRE_SIGNED_URL[$i]}" \
      --header 'Content-Type: audio/mpeg' \
      --data-binary @- \
      -i 2>/dev/null | grep -Fi ETag | awk '{print $2}' | tr -d '\r\n\"')
  PARTS+=("{\"awsETag\":\"$ETag\",\"partNumber\":$((i+1))}")
done

Complete Upload

POST
https://restapi.gaudiolab.io/developers/api/v1/files/upload-multipart/complete

Notify completion of multipart upload.

Request Body

Field	Required	Type	Description
uploadId	Yes	String	uploadId received when creating multipart upload
parts	Yes	Array	parts generated during multipart upload

Request

curl -X POST https://restapi.gaudiolab.io/developers/api/v1/files/upload-multipart/complete \
    -H "x-ga-apikey: {API_KEY}" \
    -H "Content-Type: application/json" \
    -d '{
        "uploadId": "uploadId",
        "parts": [
            {
                "awsETag": "awsETag",
                "partNumber": 1
            },
            ...
        ]
    }'

Response

{
  "resultCode": 1000,
  "resultData": {}
}
